A vacuum solenoid valve (also called a vacuum switching valve, vacuum solenoid, or VSV in some manuals) is an electrically controlled gate for engine vacuum. The control module energizes the coil; vacuum is routed or blocked so a diaphragm actuator can move—EGR, boost/wastegate control, purge, intake flaps, or another vacuum-driven device depending on the application.
It is not a fuel shut-off / stop solenoid (that cuts or holds fuel so the engine can start or stop). It is not a sensor (sensors report a value; this valve switches vacuum). Mixing those categories is a common parts-order mistake.

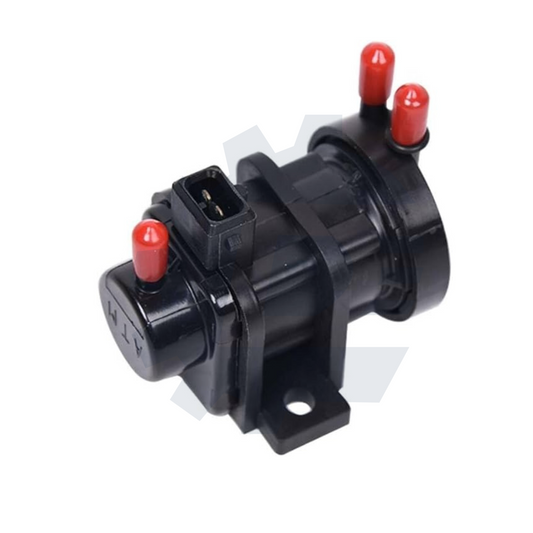

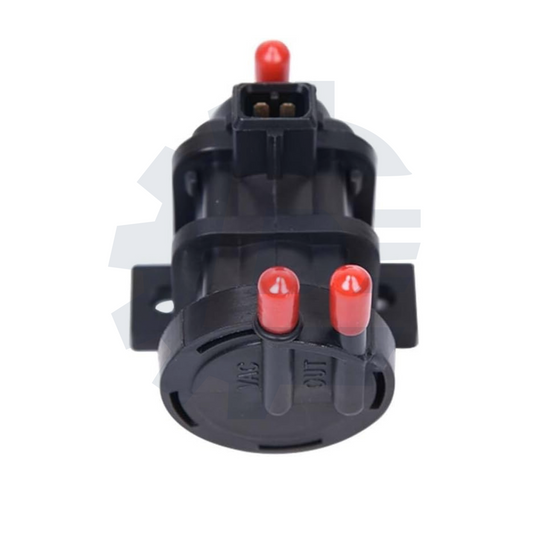

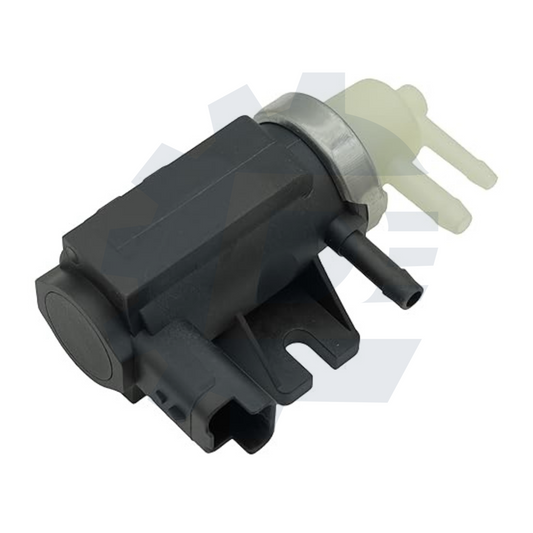

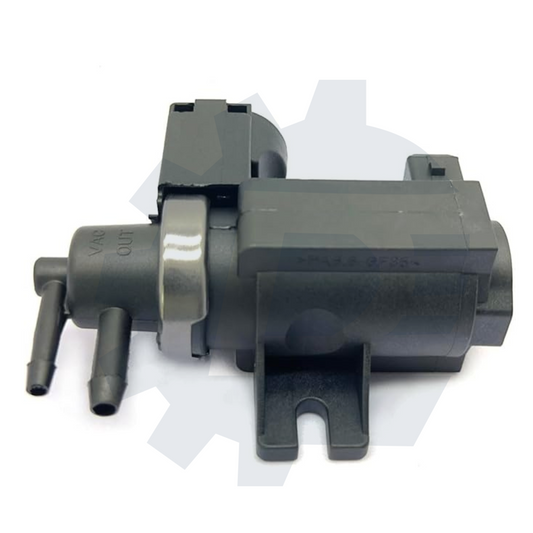

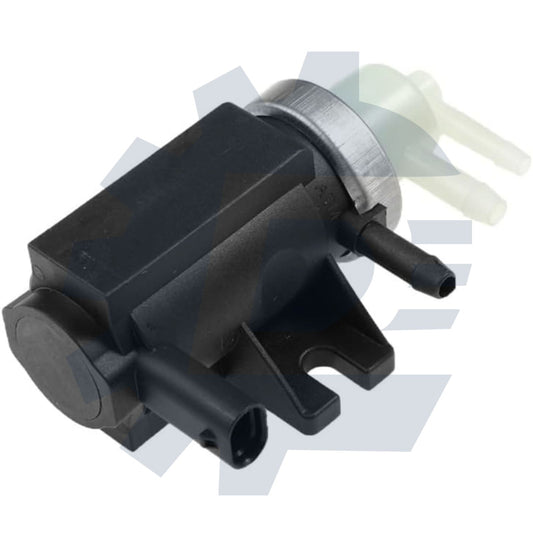

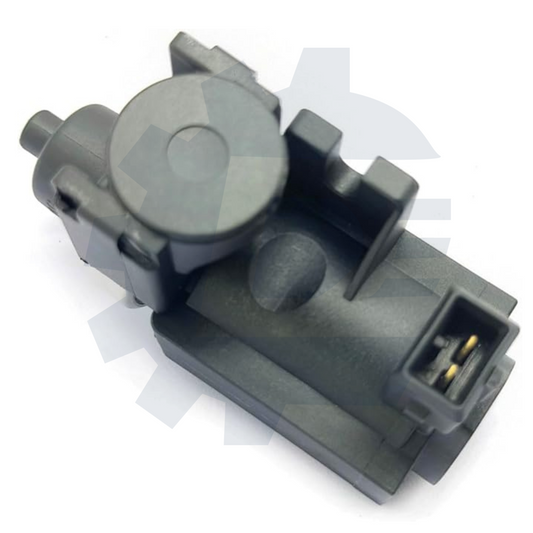

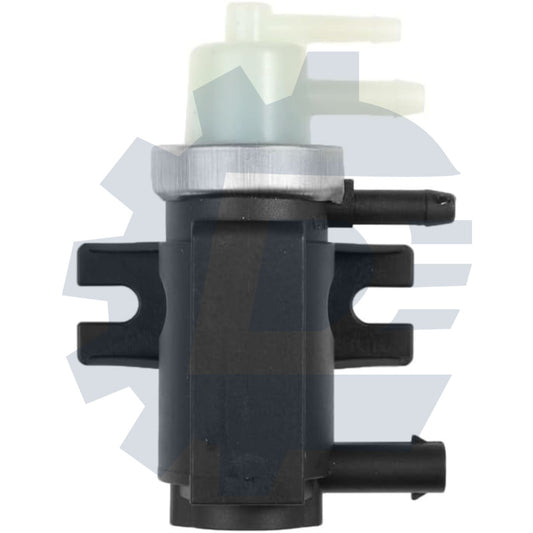

This collection lists aftermarket compatible vacuum solenoid / VSV replacements sold by DELEYAPARS. Match the OEM number on the old valve or in the parts diagram, then compare connector, port layout, and normally-open vs normally-closed style against the product photos. Listings are not factory-original OEM.
Common vacuum solenoid symptoms
Use as clues, not proof:
- Rough idle, surge, or stall with an EGR, purge, swirl, or “insufficient flow / control circuit” style fault
- Boost too hard, too late, or missing when the system uses a vacuum wastegate or bypass solenoid
- Hiss, whistle, or fuel smell near the valve or vacuum hose
- Audible click with no actuator motion—or no click when the valve is commanded
Full educational walkthrough: Vacuum solenoid valve: symptoms and when to replace.
Hose-first checks (before you replace the valve)
- Work cool; stay clear of belts and fans.
- Inspect every vacuum hose to and from the solenoid for cracks, collapse, oil soak, or loose fittings—many “bad solenoids” are hose leaks.
- Confirm vacuum supply at the source port when the engine is running (per the service method for that engine).
- Check the connector for corrosion and commanded power/ground before condemning the coil.
- Only then compare OEM number, connector, and port layout for a replacement.
When to replace the vacuum solenoid
Replacement makes sense after hoses and supply check out, and the valve fails a commanded open/close or electrical test for that design—or the body is cracked and bleeding vacuum. If the actuator diaphragm is torn, fixing only the solenoid will not restore motion. If the fault is “won’t start / won’t shut off” on diesel fuel rack control, you are likely in the shut-off solenoid category, not this one.
FAQ
What is a vacuum solenoid valve / VSV used for?
It switches engine vacuum on command so an actuator can move. It does not create vacuum by itself, and it does not cut fuel like a stop solenoid.
Is a vacuum solenoid the same as a fuel shut-off solenoid?
No. Fuel shut-off / stop solenoids control fuel delivery for start and shutdown. Vacuum solenoids route vacuum. Browse shut-off solenoids only for fuel-rack / stop symptoms.
Can a bad sensor look like a bad vacuum solenoid?
Yes. A failed related sensor can set a similar code while the solenoid and hoses are fine—and the reverse is also true. Confirm the vacuum path and electrical command before you order.
Are these genuine OEM vacuum solenoids?
No. They are aftermarket compatible replacements matched by OEM part number where listed. Confirm connector and port layout from photos.
