If your check-engine light illuminates and your diagnostic tool reads a P0340 error code, you’re far from alone. This fault is common in light-duty diesel trucks—such as the Ford F-series, Dodge Ram Cummins, and Toyota Hilux—and also affects off-road machinery like excavators and loaders equipped with similar fuel management systems. The P0340 code signals an issue with the camshaft position sensor circuit: a small yet critical component that, when faulty, can lead to stalling, misfires, or even prevent the engine from starting altogether. In this guide, we’ll break down the camshaft sensor’s function, explain why the error might linger after replacement, and outline the correct steps to replace the sensor and restore smooth engine performance.

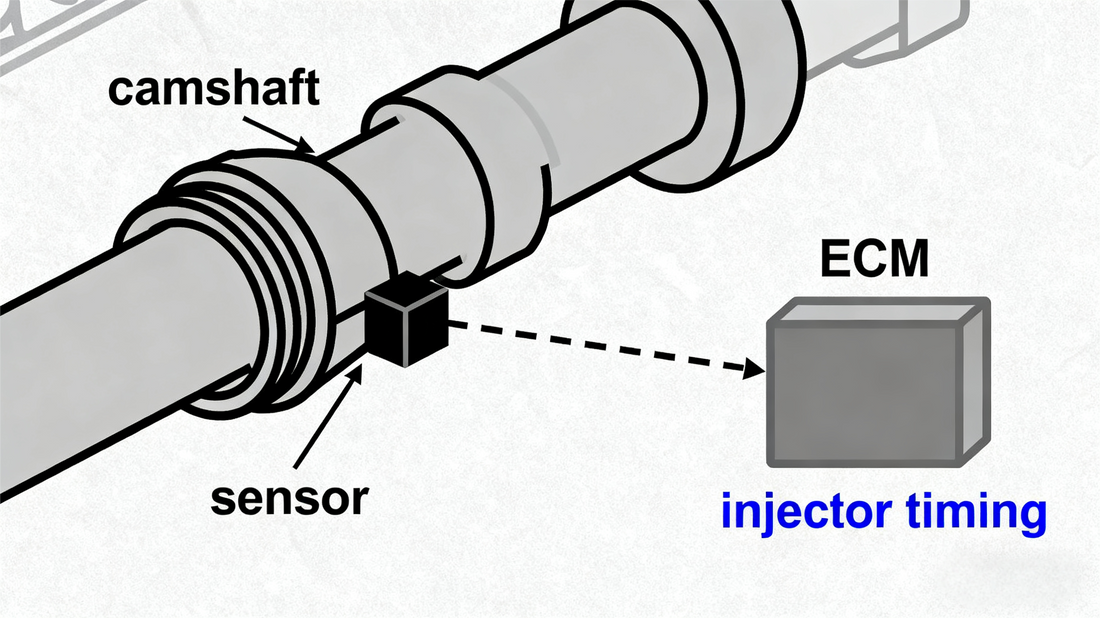

The camshaft position sensor monitors the camshaft’s rotation speed and angle, transmitting this data to the Engine Control Module (ECM). The ECM relies on this information to adjust injector timing and ignition—key for maintaining engine performance under varying loads and conditions, especially in diesel applications.
Most camshaft position sensors use a Hall-effect element, which responds to a magnetic tooth on the camshaft gear. Each pulse from the camshaft is converted into an electrical signal that the ECM interprets to synchronize engine timing. A failed sensor may cause the following issues:
- Difficult starting or intermittent stalling
- Rough idling or erratic RPM
- Sudden power loss during heavy loads
- Persistent P0340 or similar error codes
It’s frustrating to replace the sensor only to still see the P0340 code. Below are the most common reasons for this issue:
After replacing the sensor, the error code must be manually cleared from the ECM. This can be done with a diagnostic scanner or via a key-cycling procedure outlined in your vehicle/machinery’s service manual. If not cleared, the ECM will continue to display the old fault—even if the underlying issue is resolved.
Some diesel engines use multiple camshaft sensors (e.g., one for the intake camshaft and one for the exhaust camshaft). The P0340 error may persist if you replaced the wrong sensor or addressed the incorrect circuit.
Loose connectors, dirty contacts, or misaligned pins can prevent the sensor from working properly. Off-road machinery often operates in harsh environments, where humidity and dirt can corrode or disrupt electrical connections.
Not all aftermarket sensors meet the same standards. A sensor that falls outside the required voltage range will still trigger the P0340 error. Always choose high-quality, compatible parts that match your engine’s electrical system specifications.
Even with a new sensor, if the camshaft and crankshaft data are out of sync, the ECM will still detect a fault. This can happen due to worn timing gears or slack in the timing chain. In such cases, an ECM “relearn” procedure is usually required to reset synchronization.
The P0340 code indicates a problem in the “Camshaft Position Sensor Circuit”—meaning the ECM has lost contact with the sensor’s signal, voltage reference, or ground. Follow this troubleshooting guide to resolve it:
-
Check Power and Ground: Use a multimeter to verify that the 5V reference voltage and ground connection are working correctly at the sensor connector.
-
Inspect Wiring: Look for damaged, burnt, or oil-soaked wires near the sensor or along the valve cover.
-
Check for Synchronization Errors: Use a diagnostic tool to view live engine data. If the camshaft and crankshaft signals don’t align, it’s likely a mechanical timing issue.
-
Perform a Relearn Procedure: After sensor replacement, many ECMs require calibration to realign timing. Use a scan tool to initiate the “Cam-Crank Relearn” function.
Replacing the camshaft position sensor correctly can save hours of downtime. Follow these step-by-step instructions:
The sensor is typically near the cam gear or valve head. It is usually secured with 1–2 bolts and connected via a sealed electrical plug.
Turn off the ignition and disconnect the battery to avoid electrical damage during replacement.
Release the clip on the sensor connector, then use a small socket to remove any fasteners. Be careful not to drop parts into the engine housing. Gently pull the old sensor out.
Check that the sensor’s mounting bore is free of debris. Inspect the wiring and electrical components—A brittle or damaged harness can mimic a sensor failure.
Apply a small amount of oil to the sensor’s O-ring, then carefully insert the new sensor. Tighten the bolts gently (do not overtighten) and reconnect the electrical plug.
After installation, many ECMs require a “Cam-Crank Relearn” to recalibrate the sensor and sync the camshaft with the crankshaft. You can do this with a scan tool, or by idling the engine and running it through key cycles (load, idle, deceleration).
If the P0340 code clears and the engine idles smoothly, you’ve successfully replaced the sensor.
- Compare the new sensor with the old one to ensure matching shape and connector style.
- Keep the installation area clean—contamination can interfere with magnetic readings.
- Apply dielectric grease to the connectors, especially for machinery used in wet or humid environments.
- Double-check reference and signal voltages before reassembling all components.
Inspect related electrical parts, such as crank sensors, wiring looms, and ECM fuses.
A1: It’s not recommended. A faulty camshaft position sensor can cause sudden stalling, power loss, or misfires—risks that could lead to accidents (for on-road vehicles) or equipment damage (for off-road machinery). If the engine struggles to start or runs rough, stop using it and address the issue promptly.
A2: Yes. All
DELEYAPARS camshaft position sensors include detailed, vehicle/machinery-specific installation guides, including torque specifications for bolts and tips for ECM relearn procedures.
A3: Use a diagnostic scanner to check for “live data” from the camshaft sensor. If the scanner shows no signal (or an erratic signal) from the sensor, test the sensor’s power and ground with a multimeter. If power/ground are normal but the signal is missing, the sensor is likely faulty. If power/ground are absent, the issue may be a wiring fault or ECM problem—consult a professional for ECM testing.
A4: Yes. DELEYAPARS offers a wide range of camshaft position sensors engineered for light-duty diesel trucks (Ford F-series, Dodge Ram Cummins, Toyota Hilux, etc.) and off-road equipment (excavators, loaders, and other heavy machinery with diesel fuel management systems). Each sensor is tested to meet OEM electrical and mechanical standards for compatibility.
A5: For most vehicles/machinery, the process takes 30–60 minutes if you have basic tools (socket set, multimeter) and can easily access the sensor. If the sensor is located in a hard-to-reach area (e.g., deep within the engine bay), it may take 1–2 hours. DELEYAPARS sensors are designed for easy installation, with compact designs that fit into tight spaces.
Replacing a faulty camshaft position sensor is a simple yet critical maintenance task that can significantly improve engine performance. For high-quality sensors and components that stand up to harsh conditions, choose DELEYAPARS. Our extensive catalog of camshaft position sensors for off-road machinery delivers OEM-level quality at a competitive price. Order today to keep your fleet running smoothly.
