How to Diagnose and Fix a Faulty Camshaft Position Sensor: A Comprehensive Guide for Heavy Equipment Owners
Introduction:
A faulty camshaft position sensor can be a nightmare for any heavy machinery operator. If your engine stalls unexpectedly, struggles to start, or loses power under load, it could be due to a malfunctioning sensor. The camshaft position sensor plays a critical role in ensuring the precise timing of fuel injection and ignition, affecting your engine's overall performance and efficiency. In this blog, we’ll walk you through the signs of a bad camshaft position sensor, how to test it, and tips on fixing it to avoid costly downtime.
At DELEYAPARS, we offer high-quality aftermarket replacement parts, including camshaft position sensors, that meet OEM specifications at competitive prices. Keep reading to learn more about how to identify and resolve camshaft sensor issues.
1. What is a Camshaft Position Sensor?

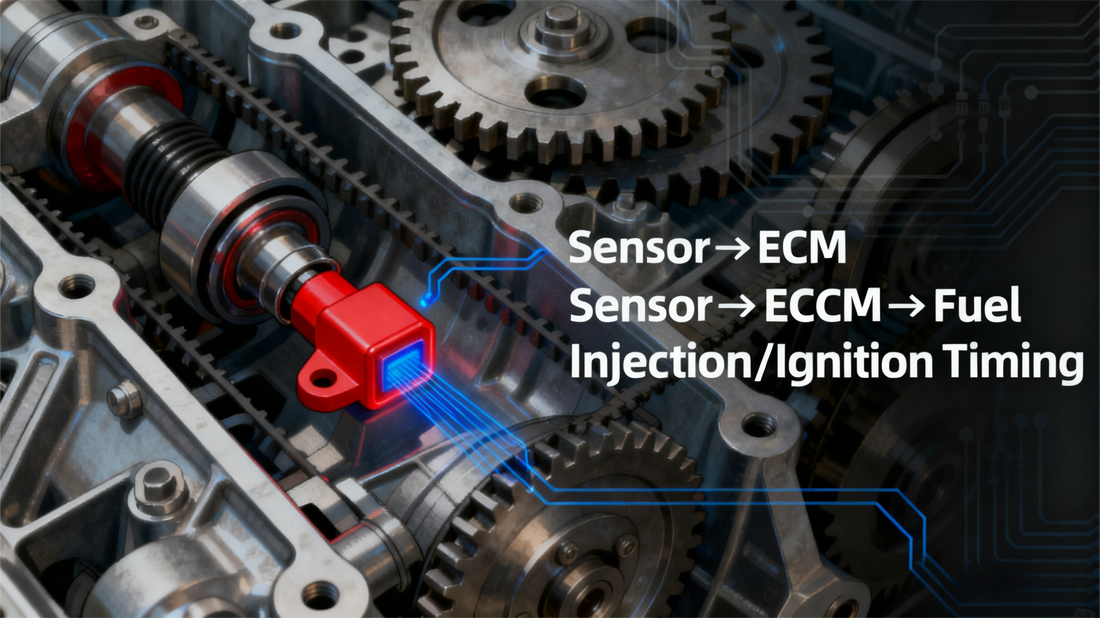

The camshaft position sensor is a vital component in modern engines, especially in off-road and heavy machinery. It monitors the camshaft's position and rotational speed and sends this data to the Engine Control Module (ECM). The ECM uses this information to synchronize fuel injection and ignition timing, ensuring optimal combustion. A malfunctioning sensor can cause poor engine performance, hard starts, or even engine failure.
2. Signs of a Bad Camshaft Position Sensor
Recognizing the early signs of a faulty camshaft position sensor can save you from more serious engine damage and costly repairs. Here are the top indicators:
1. Check Engine Light or Fault Codes
The first sign of a problem with the camshaft position sensor is often a Check Engine Light. Using an OBD-II or J1939 scanner, you may find fault codes like P0340, P0341, or others indicating sensor circuit issues. These codes typically point to problems such as broken wires, sensor signal interference, or misalignment.
2. Difficulty Starting or No Start
If the sensor is malfunctioning, the ECM cannot accurately detect which cylinder is in the compression stroke. As a result, the engine may have trouble starting or may not start at all, especially in cold or high-vibration conditions. This is a classic symptom of a faulty camshaft position sensor.
3. Rough Idle or Engine Stalling
When the sensor fails, the ECM struggles to adjust ignition timing, leading to rough idling or stalling at low speeds. This is commonly seen in older machines with high operating hours, like loaders and excavators, where the sensor’s signal becomes weak over time.
4. Loss of Power and Poor Acceleration
A faulty camshaft position sensor can cause the ECM to switch to a “limp mode,” which limits RPM to protect the engine. While this prevents damage, it also significantly reduces power output, making it harder to perform demanding tasks such as soil compaction or hauling on slopes.
5. Increased Fuel Consumption
Incorrect timing caused by a failing sensor can lead to prolonged injector open times, resulting in excessive fuel consumption. This can drive up operational costs and increase emissions, making it important to address the issue as soon as possible.
6. Engine Vibration or Shaking
Abnormal vibrations or shaking when the engine is idling or decelerating can also indicate a malfunctioning camshaft position sensor. This is often due to inconsistent or lost sensor signals, which affect engine performance and smooth power delivery.
3. How to Test a Camshaft Position Sensor?
If you suspect your camshaft position sensor is faulty, testing it is fairly straightforward. Here’s a simple step-by-step guide:
1. Check the Power Supply
First, use a digital multimeter to ensure the sensor is receiving power. Typically, the sensor requires a 5V power supply. If the voltage is incorrect or absent, the sensor may need replacement.
2. Test the Signal Output
When the engine is running, use an oscilloscope to observe the sensor’s output. Normally, the sensor should produce a square wave signal. If the signal is flat, fluctuating, or absent, this could indicate a defective sensor.
3. Physically Inspect the Sensor
Disconnect the sensor and check for physical damage. Look for signs of wear, metallic fragments, cracks, or contamination from oil or dirt, which could interfere with the sensor's magnetic field and affect its performance.
4. Scan for Fault Codes
Use an OBD-II or J1939 diagnostic tool to scan for fault codes. Codes like P0340 and P0341 indicate problems in the camshaft position sensor circuit, such as wiring issues or poor signal quality.
4. How to Replace a Camshaft Position Sensor?
If your tests confirm that the camshaft position sensor is faulty, it's time for a replacement. Here’s a basic guide for replacing the sensor:
-
Disconnect the Battery: Safety first! Disconnect the vehicle or equipment battery before starting the replacement.
-
Locate the Sensor: Refer to your equipment’s manual to find the sensor’s exact location. It’s usually located near the engine’s timing cover or cylinder head.
-
Remove the Old Sensor: Carefully disconnect the sensor’s wiring and unscrew it from its mounting position.
-
Install the New Sensor: Install the new sensor, making sure to securely connect the wiring and tighten the mounting bolts.
-
Reconnect the Battery and Test: Once the new sensor is installed, reconnect the battery and start the engine. Check for proper engine operation and ensure the Check Engine Light is no longer illuminated.
5. Choosing the Right Camshaft Position Sensor Replacement
When it comes to replacing a faulty camshaft position sensor, quality matters. Opting for high-quality aftermarket camshaft position sensors is crucial, especially in harsh operating conditions. At DELEYAPARS, we offer durable replacement sensors that match OEM specifications, ensuring your equipment continues to perform at its best without the premium price tag.
6. Conclusion
A faulty camshaft position sensor can lead to serious engine issues and costly downtime, but by recognizing the warning signs early and conducting simple tests, you can avoid major problems. Regular maintenance, timely diagnostics, and using reliable replacement parts like those from DELEYAPARS will keep your machinery running smoothly and efficiently. If you're experiencing any of the symptoms discussed in this blog, don’t wait—check your camshaft position sensor today and keep your equipment performing at its peak.
