Understanding the Fuel Shutoff Solenoid on Inline Injection Pumps
In the world of diesel engine maintenance and heavy equipment repair, the fuel shutoff solenoid is a small component that plays a massive role. If you’ve ever faced an engine that refuses to start or, conversely, won't turn off when you pull the key, you’re likely dealing with this electro-mechanical gatekeeper.
In this guide, we’ll break down how these solenoids function within an inline fuel injection pump system and why they are critical for engine control.
What is a Fuel Shutoff Solenoid?
A fuel shutoff solenoid is an electrically powered device that controls a mechanical linkage inside the fuel pump. It acts as the bridge between your engine's electrical system and its mechanical fuel delivery.

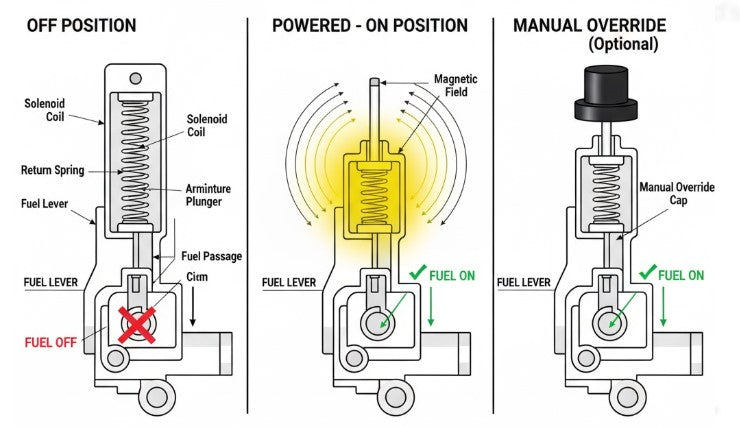

How It Works: The Physics of Starting
- Electromagnetic Field: When you turn the ignition key to the "Run" or "Start" position, electricity flows into a copper coil inside the solenoid.
- The Armature Move: This current creates a magnetic field that pulls a steel rod (the armature) upward into the solenoid body.
-
Mechanical Linkage: As the rod lifts, it moves a mechanical lever inside the pump to the "Fuel On" position, allowing diesel to flow to the injectors.
The Importance of "100% Duty Cycle"
One of the most critical technical aspects of this specific solenoid is that it operates at a 100% duty cycle.
What does 100% Duty Cycle mean?
It means the solenoid is designed to stay energized the entire time the engine is running. It isn't just a momentary switch; it is a continuous-duty component.
- Engine Running: The solenoid is constantly "working" to keep the fuel path open against spring pressure.
-
Engine Shutoff: The moment you turn off the key (or if a wire is accidentally cut), the magnetic field collapses. A heavy-duty internal spring instantly pushes the rod back down, cutting off the fuel and stopping the engine.
Troubleshooting: Common Solenoid Failures
Because the fuel shutoff solenoid is a "discrete" device (meaning it is either 100% ON or 100% OFF), troubleshooting is usually straightforward:
| Symptom | Potential Cause |
| Engine Won't Start | No power reaching the solenoid, a blown fuse, or a burnt-out internal coil. |
| Engine Won't Shut Off | Mechanical linkage is stuck, or the solenoid plunger is physically jammed in the "Up" position. |
| Engine Dies Randomly | Loose wiring or a failing relay causing the solenoid to lose its magnetic hold momentarily. |
Technical Pro-Tip
Since these solenoids are always energized while the engine is running, they will feel warm or even hot to the touch. This is normal behavior for a 100% duty cycle electrical component. However, if the solenoid smells of burnt plastic or shows signs of discoloration, it is time for a replacement.
Conclusion
The fuel shutoff solenoid is a simple but elegant safety and control feature. By converting an electrical signal into a mechanical movement, it ensures that your diesel engine only runs when you want it to.If you want more advice or buy shut off solenoid，DELEYAPARS can help you！
