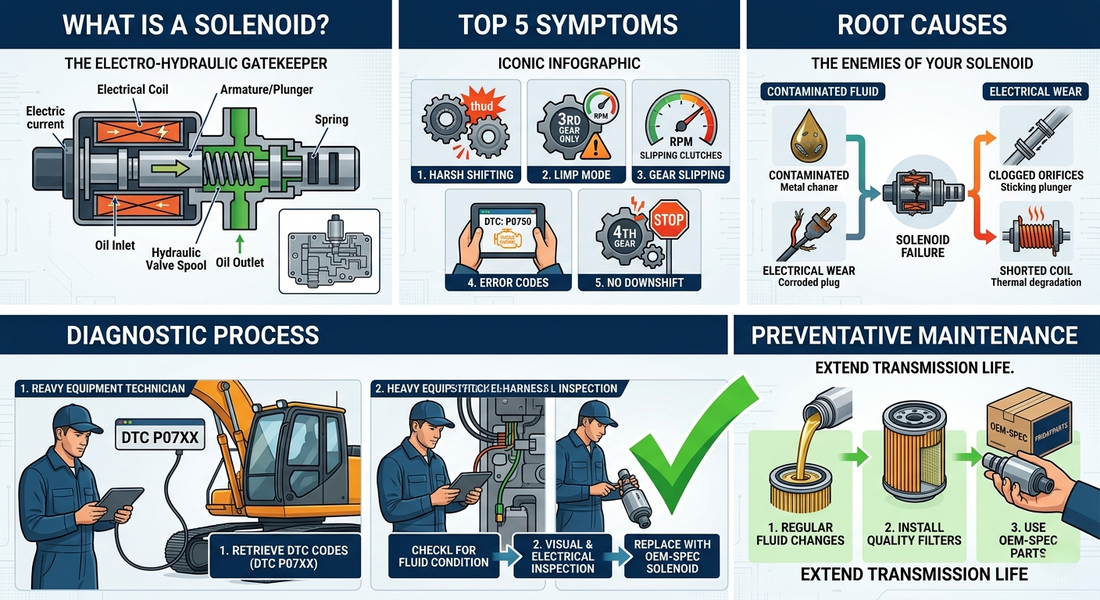

Heavy Equipment Diagnostics: 5 Signs of a Failing Transmission Solenoid

Introduction

In the world of earthmoving and construction, a transmission solenoid is the critical link between electronic commands and hydraulic action. Whether you’re operating a high-hour excavator or a modern wheel loader, a solenoid failure can instantly turn a productive workday into an expensive recovery operation. Recognizing the early warning signs is essential for any fleet manager or operator looking to minimize downtime and avoid catastrophic transmission overhaul.

1. Key Symptoms of a Compromised Solenoid

A. Harsh Shifting or "Shift Shock" When a solenoid fails to regulate hydraulic pressure properly, the transition between gears becomes violent. You’ll experience a noticeable "thud" or "kick" during upshifts or downshifts. Conversely, delayed engagement—where the machine hesitates for several seconds before finding a gear—points to a solenoid that is sticking or failing to open.

B. The "Limp Mode" Safety Protocol Modern heavy machinery is designed to protect itself. If the Transmission Control Module (TCM) detects a voltage irregularity or a mechanical hang-up in the solenoid circuit, it will trigger Limp Mode. This restricts the transmission to a single gear (usually 2nd or 3rd) and limits engine RPM to prevent internal friction damage.

C. Transmission Slipping If the engine revs up but the machine struggles to maintain ground speed, the transmission is slipping. This occurs when the solenoid cannot maintain enough pressure to keep the clutch packs fully engaged. This is a "red alert" symptom; continuing to operate under these conditions will burn out the clutches in a matter of hours.

D. Diagnostic Trouble Codes (DTCs) Your machine’s onboard computer is the first line of defense. Standard error codes such as P0750 (Shift Solenoid A) or P0741 (TCC Solenoid) indicate that the electrical resistance of the coil is out of spec or the mechanical response is mismatched.

2. Root Causes: Why Do Solenoids Fail?

• Fluid Contamination: This is the #1 killer. Microscopic metal shavings or dirt particles can clog the solenoid’s narrow orifice, causing it to seize.
• Thermal Degradation: Heavy-duty cycles generate immense heat. Over time, this heat breaks down the lacquer coating on the solenoid’s internal copper windings, leading to an electrical short.
• Voltage Drops: Corroded wiring harnesses or loose ground straps increase resistance, preventing the solenoid from receiving the "full signal" required to actuate.

3. Professional Maintenance Strategy

Before opting for a full transmission tear-down, professional technicians recommend a "Bottom-Up" diagnostic approach:

1. Inspect the Fluid: If the oil is burnt or contains "glitter" (metal flakes), the solenoid is likely a symptom of a deeper mechanical failure.
2. Clean the Connectors: Use an electrical contact cleaner to ensure the wiring harness is free of moisture and debris.
3. Source Reliability: When replacing parts, prioritize OEM-spec solenoids from reputable suppliers like DELEYAPARS to ensure the flow rates and pressures match your machine's original calibration.
