How to Locate and Replace the Fuel Check Valve on a CAT C15 Engine

Maintaining your CAT C15 engine is essential for its performance and longevity. One crucial component often overlooked in the fuel system is the fuel return check valve. In this blog post, we’ll cover the location of the fuel check valve, how to replace it, and the symptoms of a faulty valve that could affect your engine’s operation. This guide is designed for those who want to ensure their engine runs efficiently, especially if you're noticing signs of fuel system issues.

What is a Fuel Return Check Valve?

The fuel return check valve is an integral part of the fuel system in CAT C15 engines. It prevents fuel from flowing backward once it has entered the system, ensuring that fuel pressure is maintained within the appropriate range. When the engine is turned off, the check valve helps to prevent fuel from draining back into the tank, allowing for smoother restarts and consistent fuel pressure.

Where is the Fuel Return Check Valve Located?

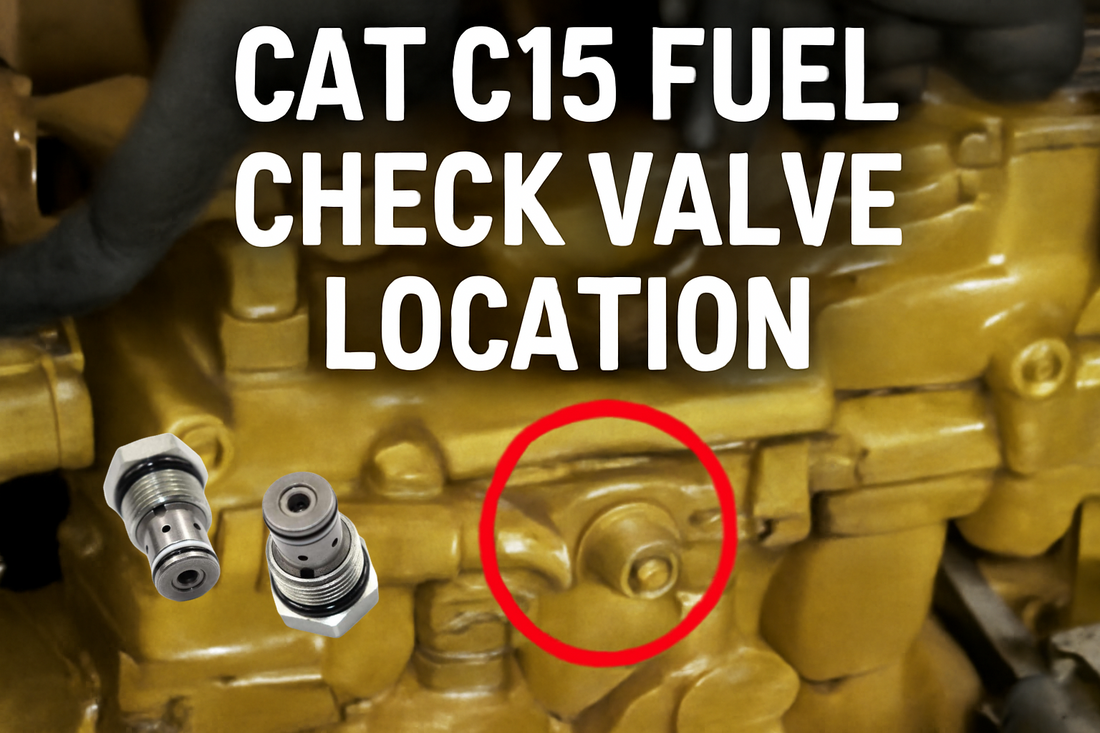

On the CAT C15 engine, the fuel return check valve is located near the fuel pump or fuel filter housing. This makes it relatively easy to access for inspection and replacement. As shown in the diagram below, the check valve is typically a simple unit that unscrews directly from the housing. Once removed, you can replace it with a new one.

Note: As per the diagram, the fuel return check valve (marked as 5) is the first component to check when troubleshooting fuel-related issues. It's important to remember that the torque specification for the fuel check valve is only about 28 ft-lbs. Don’t over-tighten it, as this could lead to damage.

How to Replace the Fuel Return Check Valve

Replacing the fuel check valve on a CAT C15 engine is a straightforward process. Here’s how you can do it:

1. Locate the Valve: Find the fuel return check valve near the fuel pump.
2. Unscrew the Old Valve: The fuel return check valve is a single unit that simply unscrews from the housing. Be cautious not to lose any small components during removal.
3. Install the New Valve: Screw the new valve into place, ensuring it’s snug but not over-tightened. Remember, the torque specification is only 28 ft-lbs, so use a torque wrench to ensure proper tightness.
4. Check for Leaks: Once the new valve is installed, turn the engine on and inspect for any fuel leaks. A properly installed fuel check valve will prevent any fuel from flowing backward.

Replacing the fuel return check valve is relatively simple, but it’s essential to use high-quality replacement parts to ensure optimal performance.

Symptoms of a Bad Fuel Check Valve

A faulty fuel check valve can cause various problems in your CAT C15 engine. Below are some common symptoms you might experience:

1. Hard Starts: If the fuel check valve is malfunctioning, fuel could flow back into the tank, causing the engine to start poorly or not at all.
2. Fuel Leaks: A damaged or faulty valve can lead to fuel leakage, especially when the engine is off.
3. Power Loss: You may notice a decrease in engine performance due to inconsistent fuel pressure, leading to power loss or stuttering during operation.
4. Increased Fuel Consumption: If the valve is leaking or not functioning properly, the engine might experience excess fuel consumption as it compensates for the fluctuating fuel pressure.
5. Erratic Engine Behavior: Fuel flow interruptions can lead to rough idling or stalling, as the engine doesn't receive the correct fuel mixture.

The fuel return check valve plays a vital role in the overall performance of your CAT C15 engine. Regular inspection and timely replacement of this part can prevent various engine issues and save you from expensive repairs in the future. If you notice any of the symptoms listed above, it might be time to inspect the fuel system and replace the valve if necessary.

By following the steps provided, replacing the fuel check valve is a simple and affordable fix that you can do yourself. Always ensure you use the correct torque when installing the new valve to avoid any potential damage. Keep your CAT C15 engine running smoothly by staying on top of its fuel system maintenance!
